A-Frame Homes

House Plan # 5128 Square Footage- 780 1st Floor, 342 2nd Floor
Total 1,122 square footage

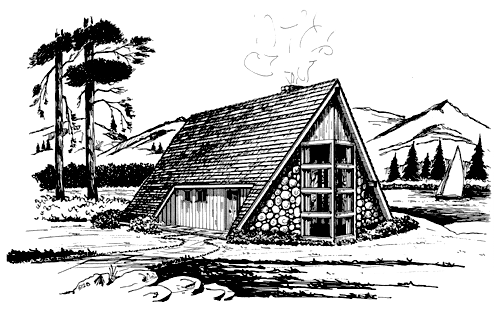

House Plan #5128 -The living area of this A-frame is two stories high with a stair leading to the second floor balcony.

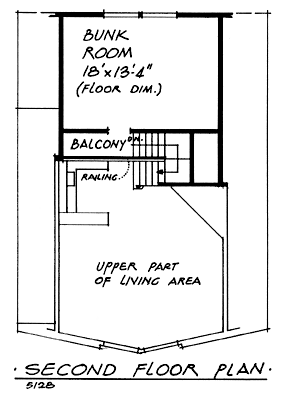

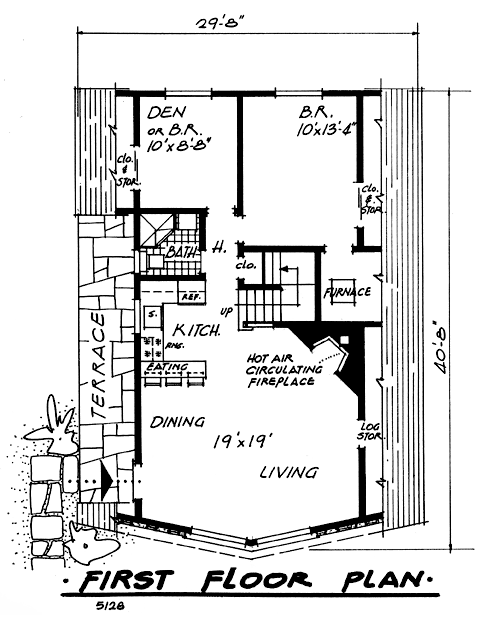

House Design # 5128 has a combination living-dining-kitchen with a fireplace and picture window that dominates the main floor. The wood-burning fireplace which supplies circulating hot air through the double-walled firebox which can be ducted to all rooms and a furnace can be hooked up to the main chimney. Adjacent to the fireplace is a large log storage area. There are two bedrooms on the first floor with large closets and storage areas and a full bath. The upper floor has a large bunkroom off the second floor balcony. For economy the home is built on a concrete slab.
